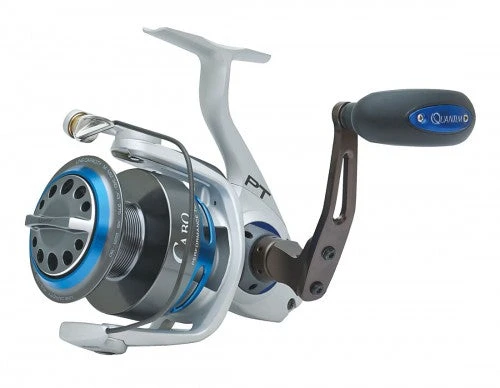

Quantum Cabo 80 Spinning Reel – CSP80PTSE

The all-new Cabo design builds on a proven saltwater heritage with a modernistic lightweight frame and more metal inside and out than its competition. The body and side cover are built from the new SCR alloy—a material designed in conjunction with marine-engine metal experts—for the ultimate in strength and corrosion resistance. Further protection is added with a SaltGuard 2.0 coating applied to the alloy prior to the painting process. The machined aluminium handle and ported aluminium spool add to the metal count, as does the huge centre shaft, which is complemented by stronger threads.
The super-sized water-tight drag includes an impressive stack of ceramic, carbon fibre and stainless steel washers above the spool, with massive ceramic and carbon fibre washers under the spool, for increased drag capacity, excellent heat dissipation and smooth delivery of power under load.

Our new Cabo design utilises seven polymer-stainless hybrid PT bearings plus one sealed anti-reverse bearing. Other features include a nickel-titanium bail and magnetic bail trip mechanism that is guaranteed for life.

The range comprises four reels. Sizes 40 and 50 have 5.3:1 gear ratios and the big 60 and 80 sizes have a 4.9:1 design. Line capacities range from 270yd of 30lb braid on the 40, up to 380yd of 65lb braid on the Cabo 80.

For icing on the cake, the new Cabo spin reels are lubricated with premium Hot Sauce grease and oil at the factory, so they’re ready to perform at their best right out of the box.

Cabo Series Features:
• 8 stainless steel bearings (7 + clutch)
• SCR™ aluminium body and side cover
• Sealed Magnum™ clutch
• SaltGuard™ 2.0 multi-layer corrosion protection
• Sealed Magnum CSC™ carbon fibre, stainless and ceramic drag system
• TiMag® titanium bail with magnetic trip*
* CSP100 and CSP120 models have a manual bail flip mechanism.

Reel Model	Bearings	Drag Rating	Gear Ratio	Reel Capacity	Reel Type
40PTSD	7+1	30lb	5.3:1	230yds/10lb	Spin
50PTSD	7+1	35lb	5.3:1	230yds/12lb	Spin
60PTSD	7+1	45lb	4.9:1	300yds/14lb	Spin
80PTSD	7+1	55lb	4.9:1	330yds/20lb	Spin
120PTSD	7+1	N/A	N/A	N/A	Spin
100PTSD	7+1	N/A	N/A	N/A	Spin
